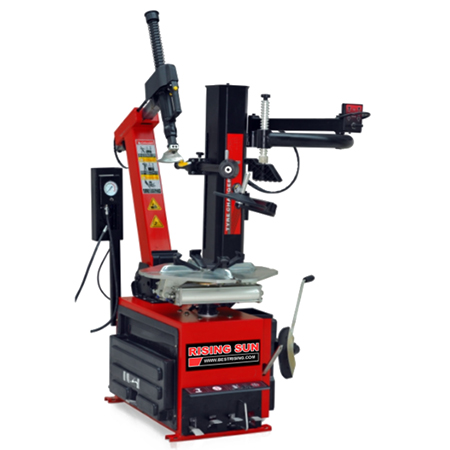

RS140B Tire Changer Machine with Helper Arm
It is applicable for changing and inflating car tyres whose rim diameter between 10”-26”.
The Marked rim diameter is the actual size of opening and gripping of new type jaws.
This tyre changer can go backwards automatically and it is equipped with assisting device of automatic swing arm , pneumatic locking device and automatic dismounting hook device .
The column going backwards pneumatically , pneumatic push-pull locking automatically.
Lifting tyre up function makes operation easy and quick .
Centeral pressing tyre function makes jaws grip rim fastly .
Replacable swing arm pressing head can fix position automatically .
Adjusting mobile slider to be suitable for different rim ranges .
The motion structure of the four automatic alignment gripping jaws on the turnplate is link mechanism , which has synchronizing function and fix center automatically when gripping from outside to inside .
The once forming mobile slider and the design of processing machinery structure made it not easy to deformation .
The working head is plated hard chrome on the surface through high frequency sudden fire, this kind of treating processes insure the intensity , toughness and abrasive resistance .
The round working turnplate has synchronous centering and fine adjustment function which make the operating of tyre changer more easy and smooth .
The tools touching rim directly like changing working head , jaws , crowbar and spade are all equipped with protector , these protectors ensure no hurt to the rim .
It has good personal presentation , thick steel plate and super strong rigidness .
Machine gained Europe CE certification .
Advanced Italy technology is introduced for this changer .The power arm with a 100mm diameter of the larger cylinder , strong tire-pressing; With a conical tire pressing wheel ,skid tir-pressing block(the teeth is below the tire-pressing block )
Angle of the cone tire-pressing wheel and tire circumference is completely consistent , smooth rotary pressing tire ;Standard aluminum screw can adjust the height of tire-pressing block ;reasonable supporting-tire disc angle strong supporting tire ;
Bead breaker shovel frame steel thick ,reasonable tire shovel angle , smooth shovel tire .In such a configuration , making the tire pressure , shoveling tire smoothly , be a good helper on changing tyres .
Rim clamp from outside
Rim clamp from inside
Max wheel diameter
2ctns, 1.25cbm ,312kgs
Quantity / 20ft container
Quantity / 40ft container
