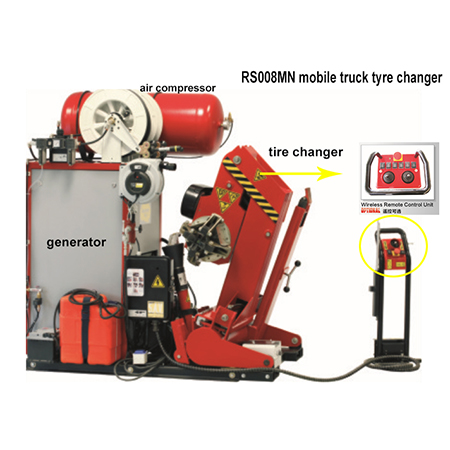

RS008MN Mobile Truck Tyre Changer
It is an electro hydraulic tyre changer for truck , bus and tractors .Equipment with a soundproofed power generator.
It can be run on the workshop and suitable for mobile service.
Technic data
Model | RS008MN |
Rim diameter | 13”-26” |
Max wheel weight | 700kgs |
Max wheel width | 600mm |
Max tyre diameter | 1300mm |
Hydraulic pump motor | 1.1kw |
Gear box motor | 1.1kw |
Bead breaker force | 2500kg |
Power | 380V/50HZ/3PH |
Packing | 1ctn,1160x1000x1550mm,580kgs |
With generator& air compressor | 1ctn,1700x1100x1650mm,880kgs |
Dimensions of van’s door | |
Min height of machines chassis to the top of the door | 1450mm |
Min width of inner van | 1650mm |
Min width of door | 980mm |
Thick of van | ≤160mm |
700mm | |
