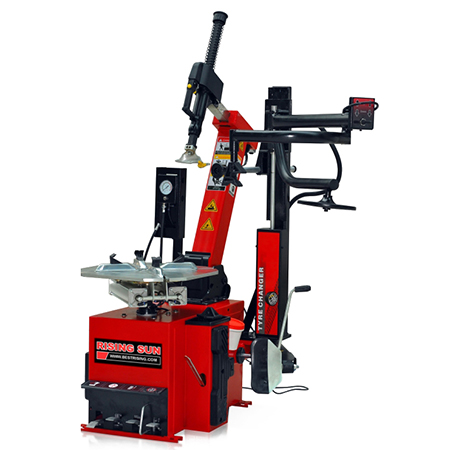

RS140A Tilting Column Helper Arm Tire Changer
It is applicable for changing and inflating car tyres whose rim diameter between 10”-26”.
The marked rim diameter size is the actual size of opening and gripping of new tyres jaws.
Product feature
This tyre changer can go backwards automatically and it is equipped with assisting device of automatic swing arm pneumatical locking device and automatic dismounting hook device .
The column going backwards pneumatically,pneumatic push-pull locking automatically.
Lifting type up function makes operation easy and quick .
Central pressing tyre function makes jaws grip rim fastly .
Replaceable swing arm pressing head can fix position automatically .
Adjusting mobile slider to be suitable for different rim ranges .
The motion structure of the four automatic alignment gripping jaws on the turnplate is link mechanism , which has synchronizing function and fix center automatically when gripping from outside to inside .
The once forming mobile slider and the design of processing machinery structure made it not easy to deformation .
The working head is plated hard chrome on the surface through high frequency sudden fire, this kind of treating processes insure the intensity, toughness and abrasive resistance .
The round working turnplate has synchronous centering and fine adjustment function which make the operation of tyre changer more easy and smooth .
The tools touching rim directly like changing working head , jaws , crowbar and spade are all equipped with protector,these protectors ensure no hurt to the rim .
It has good personal presentation , thick steel plate and and super strong rigidness.
Machine get Europe CE certification .
Selling point
1.The machine is equipped with power arm which has tire-pressing wheel , tire-pressing triangular block and the supporting tire disc . height of tire-pressing wheel and tire-pressing triangular block are very precise,pressing these two structures at the same time,the tire can be successfully installed on , save time, easy and fast .
2.Shovel frame is made from 5mm thick steel plate, steel is good .Angle of shovel is precise, in line with requirements of shoveling tire .
Technic data
Model | RS140A |
Rim clamp from outside | 10”-24” |
Rim clamp from inside | 12”-26” |
Max wheel diameter | 1040mm |
Tire width | 3”-15” |
Working pressure | 8-10bar |
Voltage | 380V/220V/110V |
Power | 1.0kw/1.5kw |
Packing | 2ctns , 1.40cbm,346kgs |
Quantity / 20ft container | 19pcs |
Quantity / 40ft container | 40pcs |
