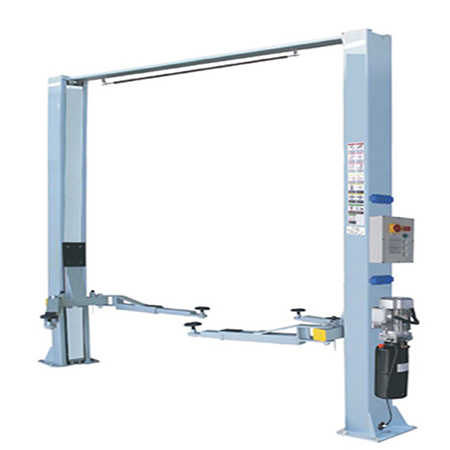

RS235CE Overhead Design Hydraulic Two Post Lift

Main feature

1      .Clear floor design makes under-vehicle service more convenient.

2      Single side electrical lock release , more safe and easy to operate.

3      Dual cylinders located in Master and slave column,high strength Chain drive system.

4      Adopt Italy made high quality seals.

5      ABS control box , 24V low voltage control system. .

6      Adopt quality pack power, more endurable, running saftely and reliably.

7      Dynamic test 115% of the rated capacity .Static test 150% of the rated capacity .

8      Dual anti-skidding safety device from column ladder safety to hydraulic seal protection to ensure double safe on the staying of the vehicle,special hydraulic system design to avoid overload running.

9      CE required 24V simple control box ( optional ).


Technic data



Lifting capacity


Max.lifting   height


Lifting time

50 S

Lowering time

40 S

Power supply

220-240V/380-415V,   1/3PH,50HZ/60HZ

Width   between Column

2800 mm

Overall height

3601 mm

Oil pressure


Motor power
